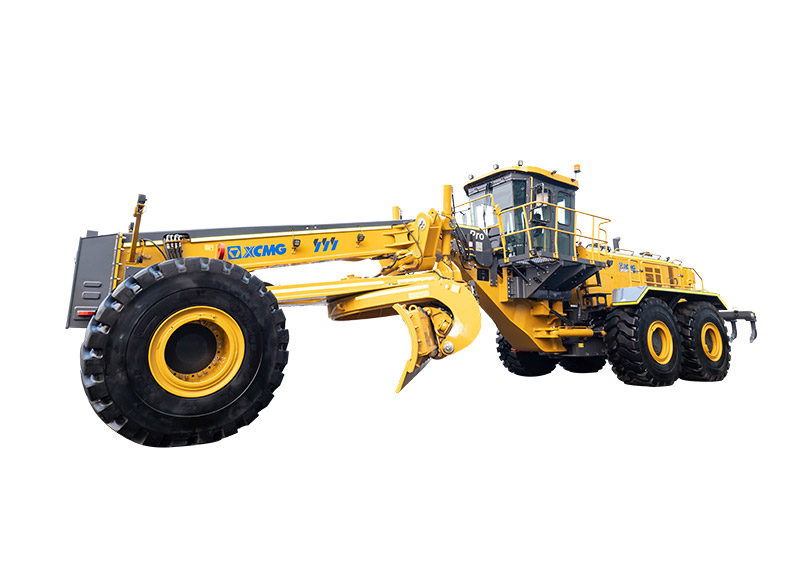

The XCMG GR5505T Pro heavy duty motor grader is specifically designed for large open pit mines.
| Model | XCMG GR5505T PRO |
| Engine model | 2806D-E18TA |
| Rated power/speed | 447kw@2100rpm |
| Machine dimension | 16430 × 4560 ×4810 |
| Machine weight | 74000 kg |
| Drive speed, forward(km/h) | 4.6/5.9/8.7/11.7/17.7/25.1/32.2/42.7 |
| Drive speed, reverse(km/h) | 4.5/8.7/17.2/32.6 |
| Traction force f=0.75 | ≥390 kN |
| Maximum gradeability | ≥30% |
| Minimum turning radius | 12.5m |
| Blade Length x Height | 7300 ×1025 mm |
| Emission | EU Stage III |
