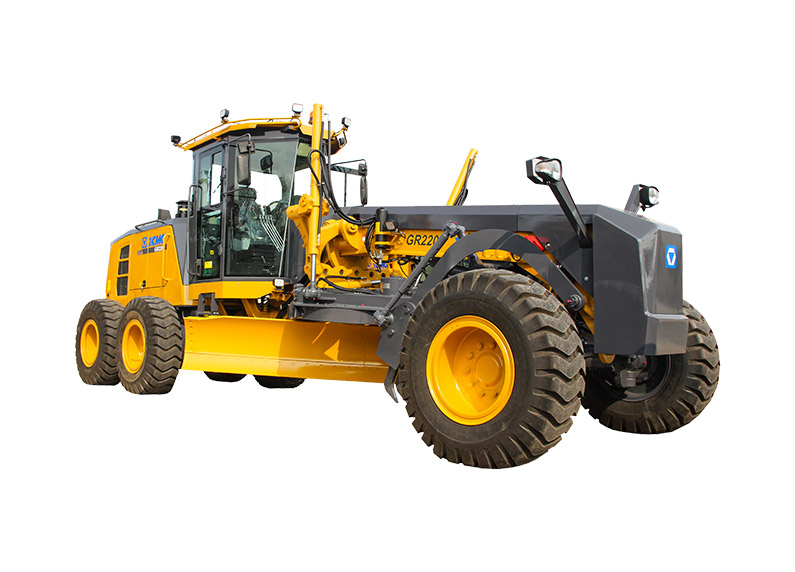

The XCMG GR2205T motor grader is mainly used for groundleveling,ditching,slope scraping,bulldozing,scari-fication,snow removal for large areas such as high-way,airports,farmlands etc.
| Model | XCMG GR2205T |
| Engine model | QSB6.7 |
| Rated power/speed | 164kw@2200rpm |
| Machine dimension | 9230 × 2656 ×3432 |
| Machine weight | 16500 kg |
| Drive speed, forward(km/h) | 5/9/12/20/25/45 |
| Drive speed, reverse(km/h) | 5/12/25 |
| Traction force f=0.75 | ≥85 kN |
| Maximum gradeability | ≥25% |
| Minimum turning radius | 7.6 m |
| Blade Length x Height | 3965 ×610 mm |
| Emission | EU Stage III |
